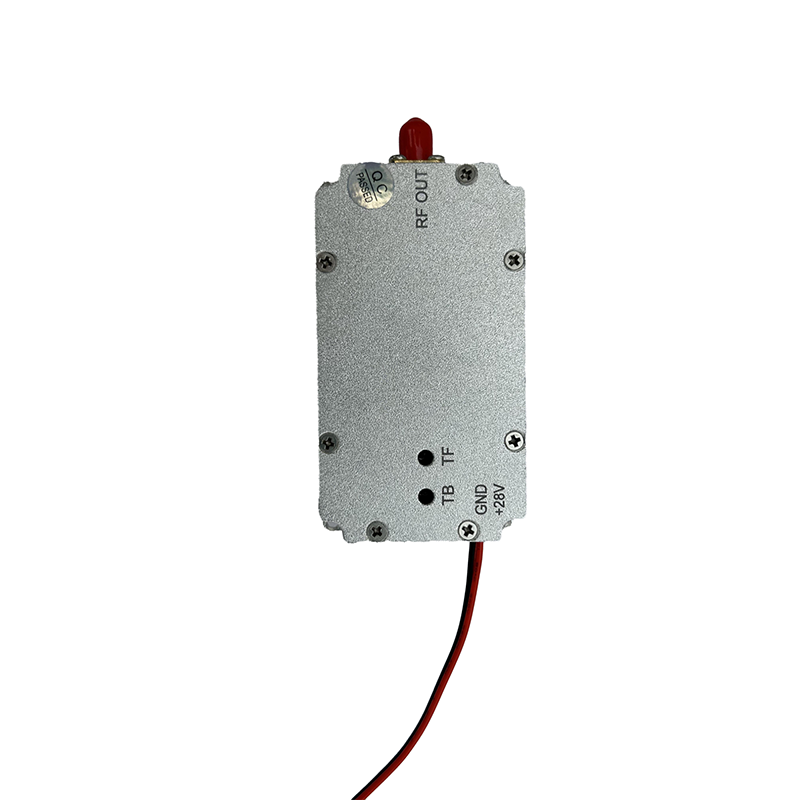

Customized RF Power Amplifier, 5.8G 5W RF Power Amplifier , Anti Drone RF Power Module.
We offer the customized frequency & output power as customer need for the anti drone UAV signal jammer module.
* Also, the mobile phone, WIFI, GPS signal jammer module is offered too.
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module.
| Indicators | Parameter |
| Working frequency | 5720-5850MHz |
| Gain | ≥37dBm |
| Max output | ≥37dBm |
| Output CW saturation power | ≥5W |
| Including inside gain flatness | ≤1±0.5dBm |
| Working current | ≤0.6A |
| Output port standing wave | ≤2.0 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
| Rf output interface | SMA |
| 27V power supply port | Feedthru Capacitor / Red black wire |
| Sweep frequency | 60-250KHz |
| VCC Power supply reference | 24V-27V |
| Max Voltage | +30V |
| Weight | 0.1kg |
| Installation dimensions | 78*41mm |
| Overall dimensions | 82*45*18mm |
| Operating temperature | -25℃ ~ +55℃ |
| Installation | Installing radiator for testing of power amplifier |
